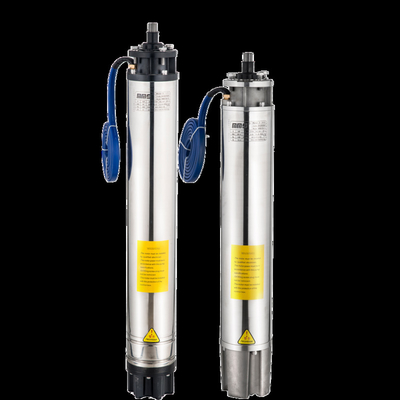

6 inch water cooled three-phase submersible motor
1. In line with ice34-1 standard, sealed water-cooled lubrication structure, no pollution
2. Mounting flange and shaft extension dimensions in accordance with NEMA standards
3. The motor housing, rotor shaft and fasteners are all made of stainless steel, and other parts are treated with anti-rust
4. Motor leading bearing and thrust bearing are made of high wear resistant materials with large bearing capacity
5. Equipped with automatic pressure regulating device for sand control and modified nitrile butadiene rubber
The quality of
6.26 years of stable quality
7. Each motor has only one, and each motor has three tests
8. Water cooling design is more environmentally friendly
material
1.100% copper wire cold silicon steel sheet, high permeability
2. Waterproof rubber line
3. The bearing
Plain bearings are durable
Can be customized.
1. Thicker stainless steel 304 tube stainless steel and cast iron top cover available
2. Special waterproof cable
Motor performance
Power range: three - phase 4kw-37kw
Voltage and frequency: three-phase 50/60hz; 360 v to 400 v
Protection class: ip58
Well water temperature greater than 40 degrees: solid content greater than/equal to 0.01%
PH: 6.5-8
Axial thrust: 15.500N
| Description | Submersible Motor |
| Specification | 3",4",5",6",8",10"12" |
| Cooling mode | Oil cooling , Water cooling |
| Power | 0.37HP-200HP |
| Volotage | 110v,220v,230,380v,410,440v,480v , Accept custom special voltages |
| Frequency | 50hz,60Hz |
| Power | Electric,Solar |
| Brand | ATA, Liyuan, MMS ,Accpet custom brand |
| Material | Stainless steel |
| Medium | Clear water, Hot water Acceptance customized for acid and alkaline water |
| Design | The professional technical team can accept customer customization |
| MOTOT POWER | CURRENT | POWER FACTOR | SPEED | LENGTH | WEIGHT | |
| HP | KW | A | COS | rpm | mm | KG |
| 4 | 3 | 7 | 0.78 | 2850 | 701 | 30 |
| 5.5 | 4 | 10 | 0.79 | 2850 | 732 | 43 |
| 7.5 | 5.5 | 13 | 0.8 | 2850 | 769 | 48 |
| 10 | 7.5 | 16.5 | 0.8 | 2850 | 804 | 50 |
| 12.5 | 9.2 | 21.5 | 0.81 | 2850 | 834 | 53 |
| 15 | 11 | 25.5 | 0.81 | 2850 | 956 | 68 |
| 17.5 | 13 | 31 | 0.81 | 2850 | 996 | 76 |
| 20 | 15 | 34 | 0.81 | 2850 | 1046 | 86 |
| 25 | 18.5 | 38 | 0.81 | 2850 | 1166 | 94 |
| 30 | 22 | 43 | 0.81 | 2850 | 1241 | 101 |
kgFREQUENTLY ASKED QUESTIONS
Q1:Are you a manufactory or trading company?
A1:Yes,we are manufactory.
Q2:Can you do OEM brand?
A2:Yes we can do OEM brand.
Q3:Can you accept the customized products?
A3:Yes we can accept the customized products.We have strong R&D team accept your specific order if you can provide us your special requirements or special samples.
Q4:What's the delivery time?
A4:The delivery time is 15-30days
submerisble motors,submerisble motors,submerisble motors
