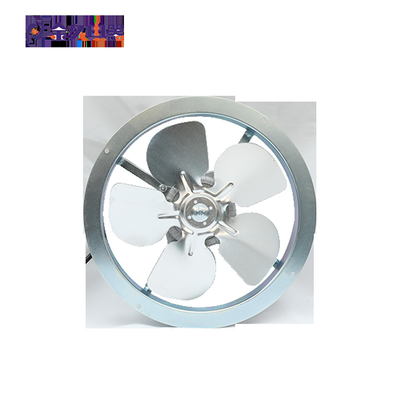

YZF series motors are single-phase, 4-pole shaded motors, rated for 220-240V,50/60Hz or 110-120V,60Hz. Widely used in condenser, radiator, evaporator and other refrigeration equipment and heating fan equipment.
Shaded pole motor adopts oil bearing, ball bearing.
The internal structure of the motor has two types: split motor and conjoined motor.
Motor output power ranges from 1W to 34W and is adjusted by changing core thickness and winding parameters.
The insulation class of the motor is B, and the protection class is IP 42. We can produce the motors with the protection class IP 44 according to the requirements of customers.
Impedance protection is adopted for motors with output power below 10W, and 125-135℃ thermal protector is adopted for motors with output power greater than 10W.
Applicable ambient temperature is -30℃-50℃.
The average life of the motor is more than 20000 hours.
The motor is CE CCC and RoHS certified.
